Add Assembly Parts to Material

Assembly parts are all the necessary materials needed to construct one finished product. For example, a stop sign would need a post, a sleeve, nuts and bolts, and the sign to construct it. You can add all those materials to an assembly and issue the assembly to a work order instead of issuing each individual material needed.

TIP: You can filter the list of records displayed. See Filter Records for more information.

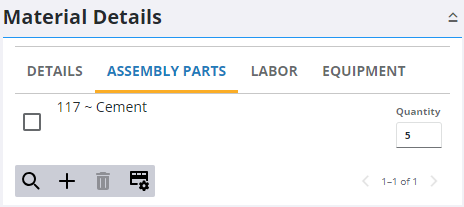

1. Select a material from the Materials panel and click the Assembly Parts tab.

2. To add a new part, click Add record.

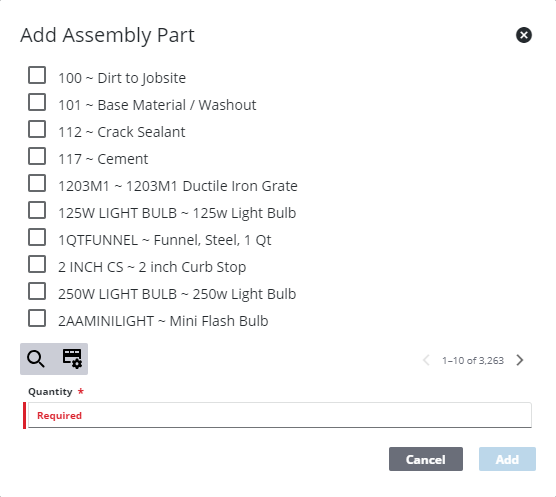

3. Select the part(s) from the list. You can filter the list by typing the first few letters of the assembly part in the search field.
4. Enter the Quantity.
5. Click Add.
6. To remove an assembly part, select the part and click Delete selected records.

NOTE: Your changes are automatically saved, and the changes are verified by a notification at the bottom of the page.
