Configure Smoke Test I and I Quantities

You can enter custom values for smoke testing the inflow and infiltration defects found in wastewater and stormwater assets. If no custom values are entered for the Leak Categories, the default values are used on the smoke test.

  1. From the home tab, click Configure and click Standard Inspection Configuration.

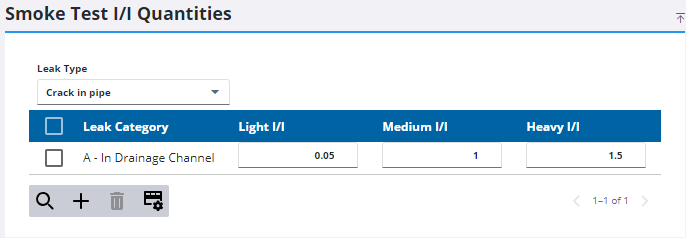

  2. Select the Smoke Test I/I Quantities tab.

TIP: You can filter the list of records displayed. See Filter Records for more information.

  1. Select the Leak Type to view or edit existing Leak Categories.

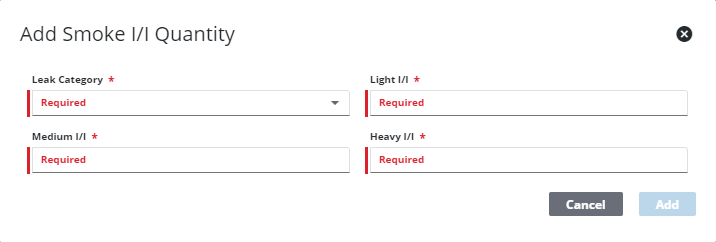

  1. To add a Leak Category, select the Leak Type and click Add record on the Smoke Test I/I Quantities panel.
  2. Select the Leak Category and enter custom values for Light I/I, Medium I/I, and Heavy I/I.
  3. Click Add.

The Leak Category now appears on the Smoke Test I/I Quantities panel.

  1. To remove a Leak Category, select it and click Delete selected records.

NOTE: Your changes are automatically saved, and the changes are verified by a notification at the bottom of the page.
