App Settings

You can access the App Settings panel before or after logging in to the app.

  1. Tap Settings.
  • GPS: Tap to configure and connect to the GNSS receiver.
  • Sync: Tap to configure automatic syncing. This setting is only available after the initial login to the app.
  • Offline Cache: Tap to view and manage offline caches for work activities, GIS, and Documents/Media. This setting only appears after logging out of the app.
  • App Logs: Tap to view and share logs and data backup.
  • Media Attachments: Tap to manage media attachments and enable photo timestamps.
  • Help Documentation: Tap to access the help documentation.
  • About: Tap to view mapping, privacy policy, and version information.
  • Logout: Tap to log out of the app.

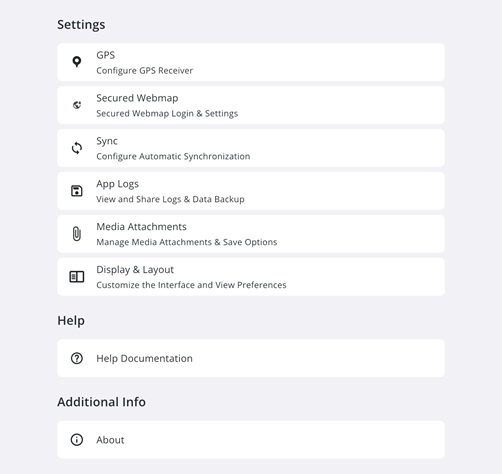

After logging in to the app, additional information appears on the Settings panel, including the user's organization, username, Last sync details, and a Logout option.

GPS

The following fields appear on the GPS panel:

  • Use Metric Units: Turn on to enable metric units.
  • Trimble Mobile Manager: Turn on to enable Trimble Mobile Manager's positioning configuration. See Connect to the GNSS Receiver for more information.
  • Antenna Height: Tap to adjust antenna height in meters. This option is not available if you have Trimble Mobile Manager enabled.
  • Location Status: Tap to view the details of your location status.

Sync

These settings are only available after the initial login to the app. The following fields appear on the Sync panel:

  • Sync Project on Open: Tap to select the project sync frequency from the drop-down list.

Offline Cache

These settings appear only after logging out of the app. The following fields appear on the Offline Cache panel:

  • Workflows & Config Data: Tap Clear All to clear all work and configuration data. This will erase all Trimble Unity Field data from your device and then allows you to see any workflow changes made to existing work activities/ processes in Trimble Unity Construct. Tap Clear to confirm.
  • Offline Map Areas: Tap Clear All to clear all map areas. This will erase all the offline map areas from your device. Tap Clear to confirm.

App Logs

The following fields appear on the App Logs panel:

  • Send App Log Only: Tap Send Data to only send the entire app log file.
  • Send App Log with Database Backup: Tap Send Data to send the app log file with the database backup.
  • Clear Logs: Tap Clear Data to delete the existing logs on the device.
  • Clear Backups: Tap Clear Data to delete the existing backups on the device.

Media Attachments

The following field appears on the Media Attachments panel:

  • Enable Photo Timestamp: This is enabled by default and ensures photos taken in the field display a text-based timestamp directly on the image. Tap to turn this setting off.
  • Help Documentation: Tap to access help documentation resources.

About

The following fields appear on the About panel:

  • Mapping: Tap to view the mapping API provided by Esri ArcGIS Runtime SDK.
  • Privacy Policy: Tap to view the privacy policy.
  • Version: Tap to view app version information.
  • Logout: Tap to log out of the app. This only appears after you are logged in.
