Log In

You can log in to the mobile app using your organization name and user credentials. Your organization determines which Trimble Unity cloud service instance you are connecting to.

If you enter an incorrect password three times within a 15-minute period, your account is temporarily locked and you are prompted to try again after 30 minutes. Administrators can configure both the number of attempts and the lockout duration in Trimble Unity Construct. See the Trimble Unity Construct Security Settings documentation for more details.

PREREQUISITES: Before logging in to the app, ensure that:

  • Your device is connected to the internet.
  • You know your organization name and user credentials. If you do not know your organization or need information on how to setup a new account, please contact your administrator
  1. Launch the Trimble Unity Field mobile app.

A message appears asking you to allow the Trimble Unity Field app to access your device's location services. Depending on your device, you may be prompted to select your preferred location permissions.

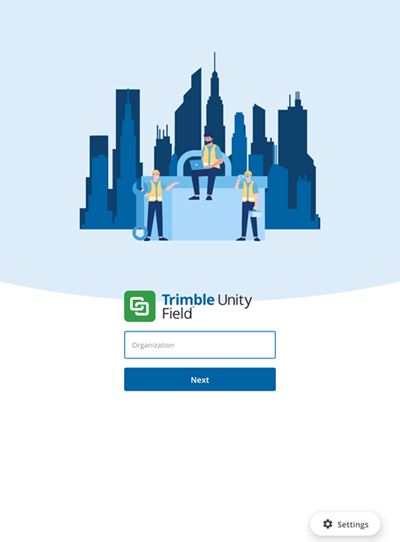

  1. Enter your Organization.

NOTE: The Organization, Username, and Password fields are case sensitive.

  1. Tap Next.

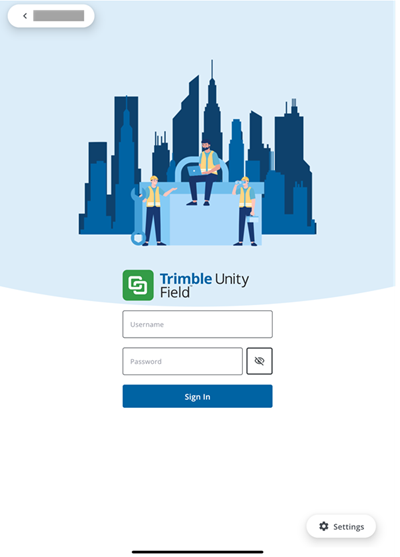

  2. Enter your Username and Password.

TIP:

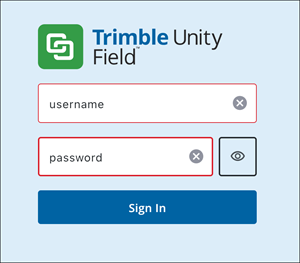

  • Tap the X icon in the Organization, Username, or Password field to quickly clear the entered text.
  • Tap the Visibility icon to toggle the visibility of your password.

  1. Tap Sign In.

  1. Agree to the Terms and Conditions.

IMPORTANT: If your organization has user agreements configured, when you log in for the first time, you will need to accept the agreements in order to access the app. If you decline any of the agreements, you will be taken back to the login page.

For Android and iOS users, your device's credential manager may prompt you to save your login information, including biometric data, for access in the future. If accepted, your credentials will automatically fill on subsequent logins, streamlining the login process and improving efficiency for users who switch between multiple organizations.

At the initial log in, the app automatically syncs. The progress panel shows the total number of updates and changes that are being synced.

PREREQUISITES: Before logging in to the app, ensure that:

  • Single Sign-on is configured for your account. If Single Sign-on is not configured, you will not be able to log in to the app.
  • You must configure the redirect URI in your ArcGIS Online (AGOL) or ArcGIS Enterprise Portal environment in order to use SSO. See Configure the Redirect URI for more information.
  • Your device is connected to the internet.
  • You know your organization name and user credentials. If you do not know your organization or need information on how to setup a new account, please contact your administrator.
  1. Launch the Trimble Unity Field mobile app.

A message appears asking you to allow the Trimble Unity Field app to access your device's location services. Depending on your device, you may be prompted to select your preferred location permissions.

IMPORTANT: To use location-based features, such as capturing a location or collecting GIS feature data, you must enable location permissions for the app. Without these permissions, these features will be unavailable.

  1. Enter your Organization.

NOTE: The Organization, Username, and Password fields are case sensitive.

  1. Tap Next.

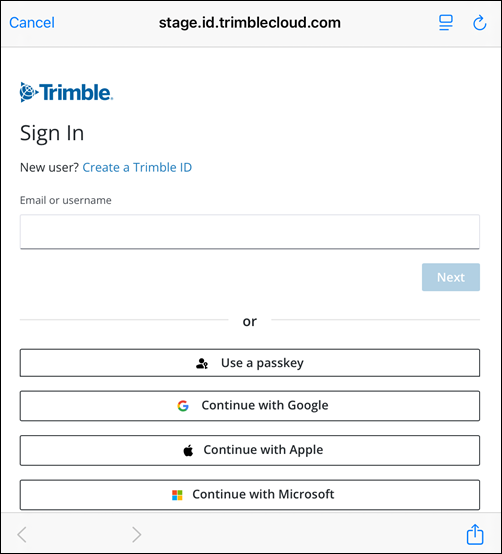

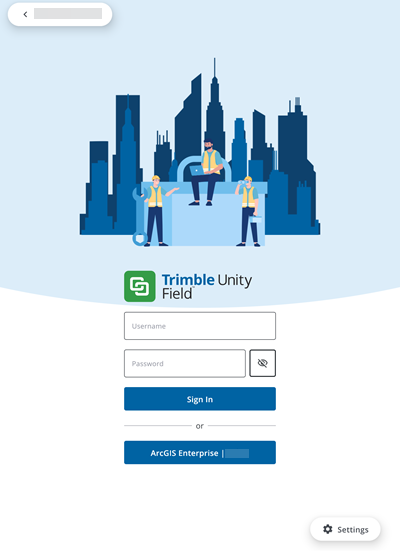

  2. Tap your SSO option to log in. For example, log in using your ArcGIS Online or Portal for ArcGIS credentials.

TIP:

  • Tap the X icon in the Organization, Username, or Password field to quickly clear the entered text.
  • Tap the Visibility icon to toggle the visibility of your password.

  1. If prompted, accept any SSO permission requests.
  2. Tap Sign In.

For Android and iOS users, your device's credential manager may prompt you to save your login information, including biometric data, for access in the future. If accepted, your credentials will automatically fill on subsequent logins, streamlining the login process and improving efficiency for users who switch between multiple organizations.

At the initial log in, the app automatically syncs. The progress panel shows the total number of updates and changes that are being synced.
