View Work Activities on the Map

You can view work activities on the map.

Work activities appear as icons on the map.

  1. On the map, tap the Select icon.

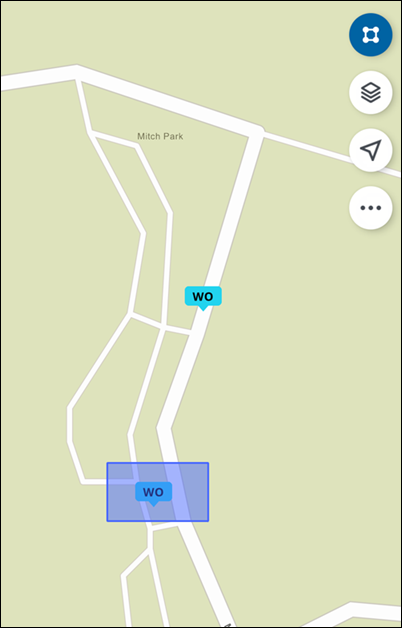

  1. Draw a rectangle over the Work Activity icon.

NOTE: You can also tap on a work activity icon to select it.

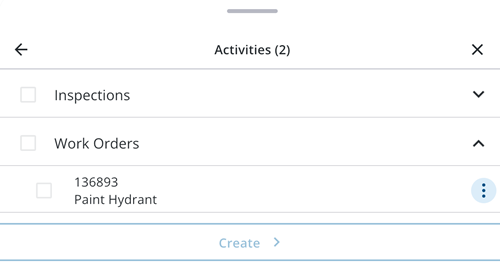

  1. From the list of available assets and activities, tap Activities.
  2. On the Activities panel, tap the desired work activity type. For example, tap Work Orders to view the selected work orders.

  1. Tap a work activity.

The work activity details screen opens.

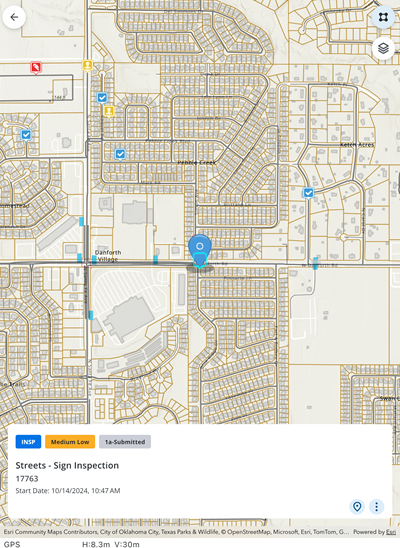

  1. On a summary card, tap the Map icon.

The Work Activity icon is highlighted on the map.

  1. Open a work activity.
  2. Tap Zoom.

The map opens and the work activity icon is highlighted, along with any associated assets or related work activities.

  • Map icon: Tap to view the work activity on the map.
  • More: Tap to access more actions.
  • Directions: Tap to open driving directions to the work activity.
  • Attach: Tap to add an attachment to the work activity.
  • Create Related Activity: Tap to create a related work activity.
