Search Parameters Fields

The following fields are found on a parameter when creating a query.

  • Load min/max range from map: Click to load the X or Y from the current map extent. The map must be open for this icon to appear.

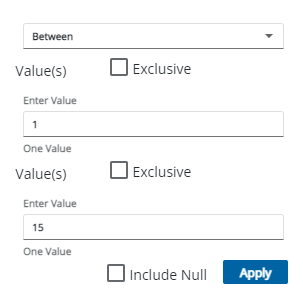

  • Numeric search icon: Some search fields allow you to search for numeric ranges. You can use the search box or enter the search syntax directly into the field.

  • Between: Select to search for a single number or for any numbers contained between a set. For example, return any amounts between 100 and 500.
  • Not Between: Select to search for any numbers not contained between the set. For example, return any amounts not between 100 and 500.
  • Equal: Select to search for a single number or for any numbers contained in a set. For example, return any amounts equal to 100, 200, 300, 400, or 500.
  • Not Equal: Select to search for a single number or for numbers in a set that is not equal. For example, return any amounts not equal to 100, 200, 300, 400, or 500.
  • Greater Than: Select to search for any numbers greater than the specified number. For example, return any amounts greater than 500.
  • Greater Than or Equal: Select to search for any numbers greater than or equal to the specified number. For example, return any amounts greater than or equal to 500.
  • Less Than: Select to search for any numbers less than the specified number. For example, return any amounts less than 500.
  • Less Than or Equal: Select to search for any numbers less than or equal to the specified number. For example, return any amounts less than or equal to 500.
  • Null: Select to search for any number not within a range of values.
  • Exclusive: Select to search for only the numbers entered in the fields.
  • Include Null: Select to include the null options in your search results.
  • Apply: Click to apply the search parameters.

  • More options icon: Click to select an Operation and value to search on.
