Add Serialized Material

Add or upload serial numbers for existing material or new material.

PREREQUISITES:

  • Material must be created before serial numbers can be added. See Add a Material for more information.
  • Material must be received or have stock on hand before serial numbers can be added. See Receive Material for more information.
  1. Click Configure from the menu.
  2. Click Material.

TIP: You can filter the list of records displayed. See Filter Records for more information.

  1. Click the arrow to the right of the material.

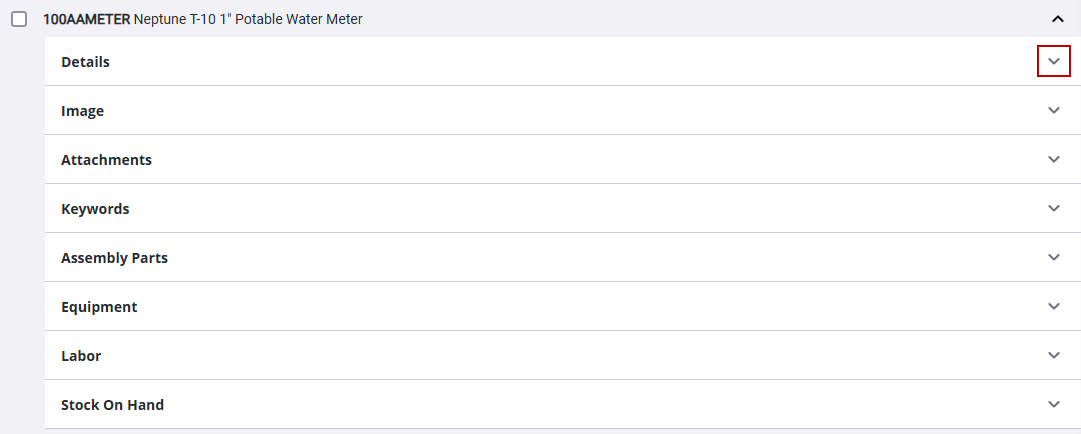

Material panel drop-down arrow for a material.

  1. Click the arrow to the right of Details.

  1. Select Is Serialized.

NOTE: If Splittable is selected or the material has children material, then the Is Serialized check box cannot be selected.

If there is stock on hand, the Serial Number Needed panel opens. You can upload a .csv file or manually add the serial number.

  1. On the Serial Info Needed panel, click Upload CSV.

TIP: The .csv template file is located in the Upload a CSV file panel. Click Download Template to download the template. The template file is pre-filled with how many serial numbers are needed.

NOTE: The columns in the template are Serial Number, Warranty Date, and Expiration Date. The Serial Number column is a required column. The Warranty Date and Expiration Date are optional. The first row of the .csv file is ignored by Storeroom, as it is meant to be used for headers.

  1. Click Choose File. Browse to the file.

  1. Click Done.

  1. On the Serial Info Needed panel, click Manual Entry.

  1. Select the storeroom from the Storeroom drop-down list. The number of serial numbers needed for the selected storeroom is displayed at the top of the panel.
  1. Enter the serial number in the Serial Number field or use Scan Barcode to scan the serial number.
  2. Add the Warranty Date and Expiration Date using the calendar icon and add the unit cost in the Unit Cost field, if desired.
  3. Click Add in the Serial Number field to add to the Assigned panel.
  1. If needed, change the Storeroom to add serial numbers of the same material to a different storeroom. The number of serial numbers needed update at the top of the panel when the storeroom is changed.
  2. When all the serial numbers are added, click Done.

NOTE: Done is grayed out until all of the serial numbers have been added.

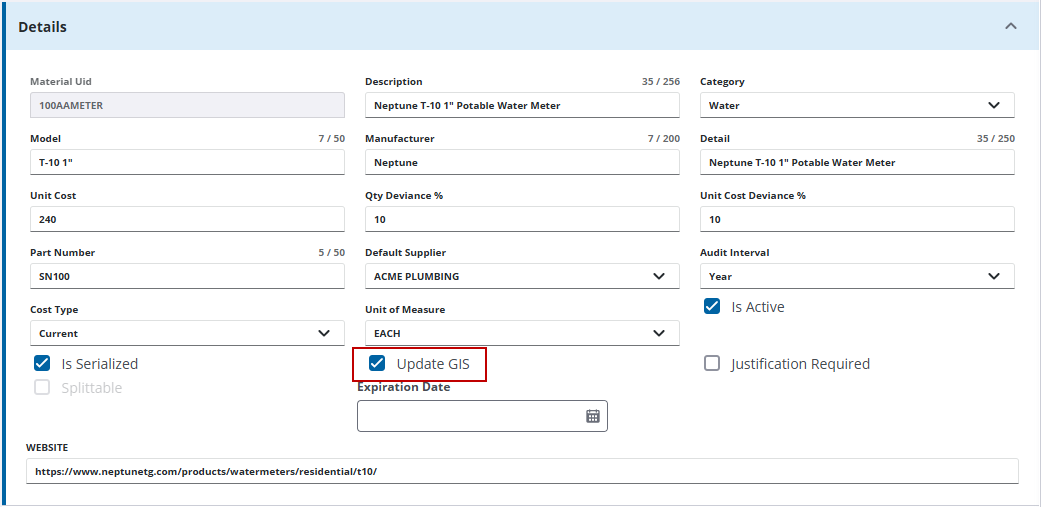

  1. Select Update GIS to have the material mapped to GIS fields and added as a GIS object to the geodatabase. See Map Serialized Material to the GIS in the Admin Guide for Trimble Unity Maintain and Trimble Unity Permit for more information.
