Select Assets on the Map

You can view and select assets from the map.

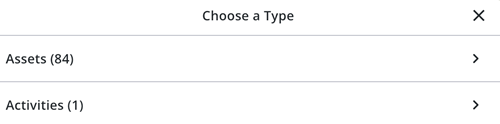

If your selection contains both work activities and assets, the Choose a Type panel appears.

  • Assets: Tap to view selected assets.
  • Activities: Tap to view selected work activities.

NOTE: You can choose which layers and assets on the map are selectable. See Toggle the Visibility and Selection of Layers for more information.

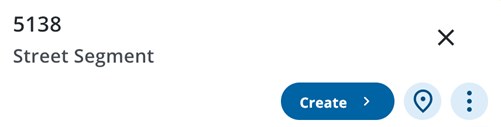

If a single asset is selected, the asset card appears on the map.

  1. Open the Map.
  2. Tap the Select icon or tap the map to select a single asset.
  • Asset Card: Tap the card to view the asset details. See Asset Details for more information.
  • Create: Tap to create a work activity from the selected asset.
  • Map icon: Tap to view the selected asset on the map.
  • More icon: Tap to access more actions.
  • Locate: Tap to open advanced locate for the selected asset.
  • Directions: Tap to open driving directions to the selected asset.
  • Web: Tap to open the selected asset in the web application.

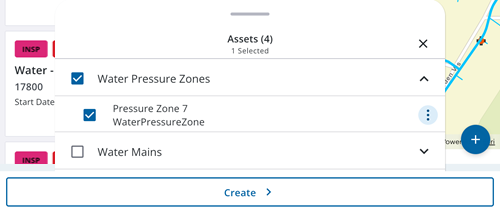

If multiple assets are selected, the Assets panel appears displaying each asset.

  1. Tap on the map.

Any selectable assets in that area are selected and appear on the Assets panel.

  1. Tap the check box to select one or more assets.

The number of selected assets updates and the Create option is available.

  • Tap an asset to view the Asset Details screen.
  • Hierarchy icon: Tap to open the asset hierarchy, if one is available.
  • More Actions icon: Tap to open the More Actions menu.
  • Zoom to Location: Tap to zoom to the asset location on the map.
  • Web: Tap to open the selected asset in the web application.
  • View Asset Details: Tap to view the asset details. See Asset Details for more information.
  • Create: Tap to create a new inspection, work order, or service request for the asset.

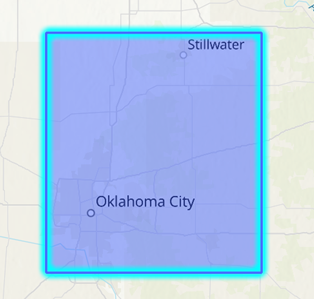

The Select icon allows you to select assets on the map. Users can define their selection area with a rectangle drawn on the map.

  1. Tap the Select icon.

  1. Tap and drag across the map to draw a rectangle.

Any selectable assets in that area are selected and appear on the Assets panel.

You can view the asset hierarchy for a selected asset that has child assets or a hierarchy associated with it.

  1. Select a single asset on the map via a tap or by drawing a rectangle.
  2. Tap Hierarchy.

The Hierarchy panel opens.

  1. Tap the check box to select one or more assets.
  • More Actions icon: Tap to open the More Actions menu.
  • Zoom to Location: Tap to zoom to the asset location on the map.
  • Create: Tap to create a new inspection, work order, or service request for the asset.

Users can clear an existing selection.

  1. Tap X or swipe down on the Assets panel to clear the selected assets.
