Create a Banded List

A banded list is a tool for organizing and presenting your report data through a collection of bands. By default, a banded list consists of a header, a footer, and a details band. When you add a data group, it can also include group header and group footer bands, where report controls repeat for each group on each page of the report.

1. Click somewhere in body of your report.

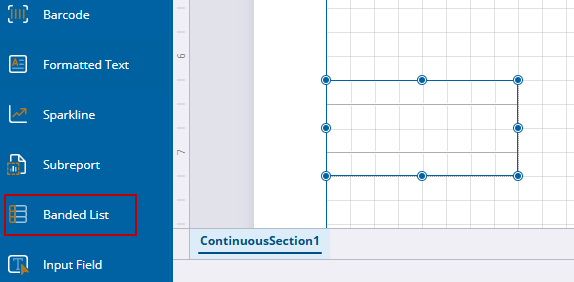

2. Select Banded List from the AR Web Designer toolbar to insert it.

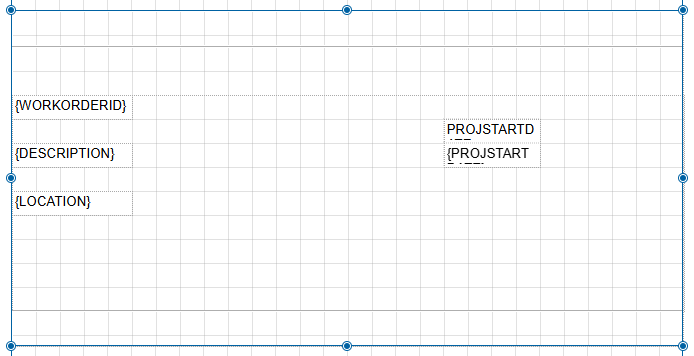

2. Drag containers or other report controls into the Details section, the middle section, of the banded list.

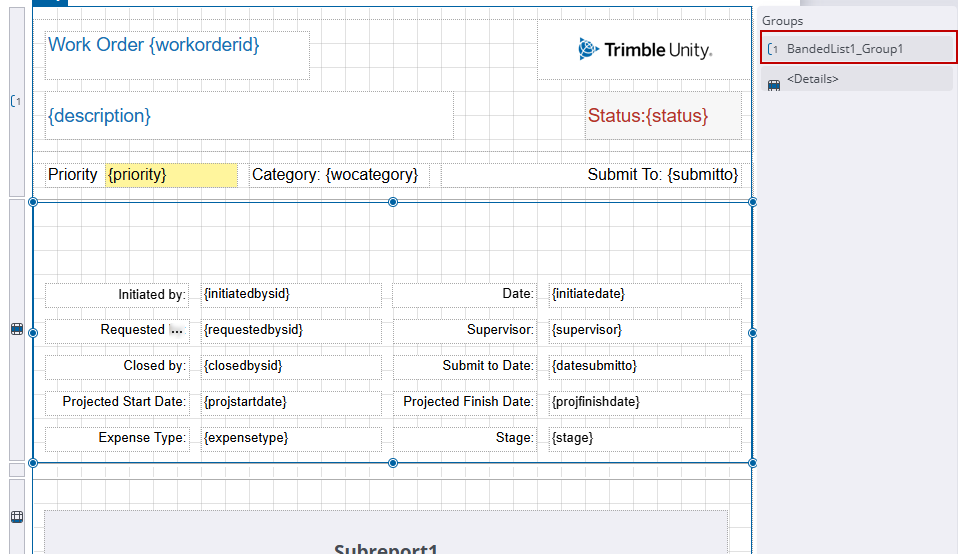

3. Group the data within the list to organize the fields. See Group Report Data for more information.

4. Fill out the header and footer of the banded list.

5. Click Save.
6. Click Preview to see if the report looks as expected. See Preview a Report for more information.
